clean room wall ceiling panels accessories

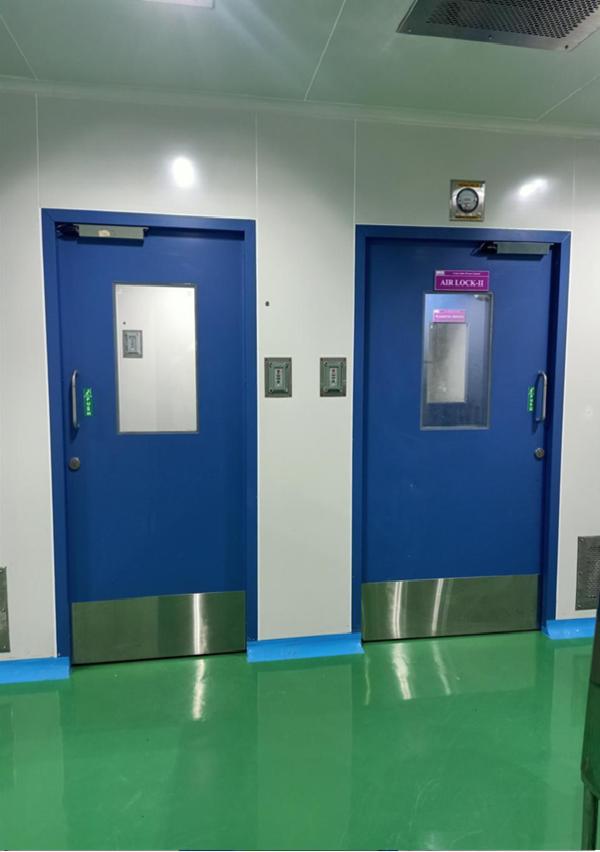

All internal and external corners of our modular wall panel systems are fitted with aluminium covings, featuring special male and female profiles with a locking system. These covings are securely attached, seamlessly connecting wall panels to the floor, ceiling panels to wall panels, and wall panels to each other. Modular Clean Room Doors Air System Clean Room doors are crafted from galvanized or stainless-steel sheets with lock-formed edges. These doors are insulated and bonded with polyurethane foam, honeycomb paper, or mineral wool, creating a rigid, flush fitting. They feature innovative flush double glazing, finished with a pure polyester powder coating of 60-80 microns for a smooth surface finish. Standard Door Specifications: Type – Single/Double Leaf Leaf Thickness – 44 mm (or as per specific requirement) Leaf & Frame – Galvanized Steel, Stainless Steel Material Door Leaf – 44 mm thick, Shutter standard sheet thickness 0.8 mm to 1 mm thick or as per specific requirement. Door Frame – Extruded Aluminium powder coated profile frame/ GI powder coated frame/ SS 304 frame. Infill PUF/Rockwool/Honeycomb Reinforcements – At hinges, door closer and lock case fitments Finish – Doors are coated with either pure polyester or epoxy polyester powder achieving a coating thickness of 60-80 microns. (Powder coating available in standard RAL colours) Glazing – 5-6 mm thick toughened glass/float glass Ironmongery – SS Ball Bearing hinges, Latch Lock, Dead Lock, Door Closer, D Handle, Push Plates, Kick Plates, Automatic Bottom Drop Seal, Panic Bar for emergency doors, etc Door opening – Left or right as needed Construction can be tailored to meet specific requirements.
